Modeling TCSC for Stability Studies: Methods for Analyzing Power System Performance

Introduction

In an era where electrical energy serves as the lifeblood of modern society, the stability and reliability of power systems cannot be overstated. One of the advanced devices revolutionizing this landscape is the Thyristor Controlled Series Capacitor (TCSC). Found within the larger family of Flexible AC Transmission Systems (FACTS), TCSCs play a vital role in enhancing grid stability, improving power flow control, and mitigating oscillations during disturbances.

This blog dives deep into how TCSC is modeled for stability studies, exploring the analytical methods used, simulation tools available, and real-world applications that demonstrate its value in power system performance enhancement.

TCSC stands for Thyristor Controlled Series Capacitor. It’s an advanced FACTS device designed to dynamically regulate the impedance of transmission lines by adjusting the effective capacitance using thyristor-controlled reactors in parallel with capacitors.

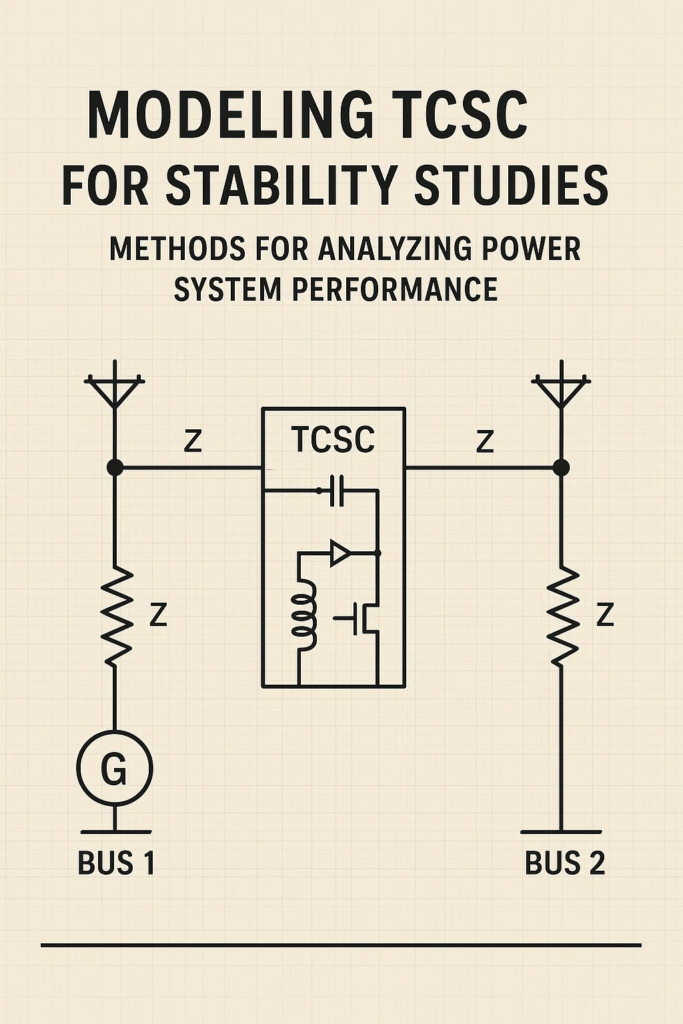

Structure of TCSC

A basic TCSC includes:

• A series capacitor inserted into the transmission line.
• A thyristor-controlled reactor (TCR) connected in parallel with the capacitor.
• A control system that adjusts the thyristor firing angles to modulate the inductive reactance.

This configuration enables precise regulation of line impedance, offering control over power flow and damping system oscillations.

TCSC is widely adopted in both small and large power systems due to its ability to:

• Enhance power transfer capability
• Regulate active and reactive power flow
• Dampen low-frequency oscillations⚙️ Improve transient and voltage stability Prevent cascading failures during disturbances

In other words, it’s a critical tool in boosting the dynamic security of modern power systems.

Modeling TCSC: Techniques and Approaches

Modeling TCSC accurately is crucial for stability analysis. Depending on the application, different models are used, ranging from simple linear approximations to detailed nonlinear simulations.

For power flow analysis and economic dispatch studies:

• TCSC is represented as a variable reactance.
• Power flow equations incorporate the modified impedance of the transmission line.
• Models used: DC load flow models and AC load flow models with impedance adjustments.

These models simplify computation and are ideal for static evaluations of grid conditions.

Used in transient stability and oscillatory stability studies:

• Involves nonlinear differential equations to simulate the TCSC behavior under system disturbances.
• Models include the thyristor firing logic, capacitor voltage dynamics, and reactor current control.
• Typically implemented in simulation platforms like MATLAB/Simulink, DIgSILENT PowerFactory, or PSCAD.

Dynamic models help simulate fault conditions, sudden load changes, or generator outages—making them essential for robustness evaluations.

For high-fidelity studies:

• Incorporates switching characteristics of thyristors.
• Captures capacitor charging/discharging cycles.
• Simulates high-frequency transients and harmonics.

Such complex models are crucial when analyzing electromagnetic interference or designing protection schemes around TCSC devices.

Methods for Analyzing Power System Stability with TCSC

Focuses on system behavior after small disturbances (e.g., minor load changes).

• TCSC provides damping torque, reducing oscillatory modes.
• Eigenvalue analysis and transfer function modeling are used to quantify improvements.
• Modal analysis tools identify critical oscillatory modes and damping factors.

Evaluates system response to large disturbances (e.g., short circuits, generator trips).

• TCSC helps control power angle deviation and stabilizes generator synchronism.
• Time-domain simulations track rotor angles, speeds, and voltages post-disturbance.
• Used to verify critical clearing time (CCT) and stability margins.

Voltage collapses pose significant risk—especially in weak grids.

• TCSC maintains voltage levels by supporting reactive power control.
• PV and QV curve analysis measure voltage margins and loading capability.
• Sensitivity techniques determine the most effective location for TCSC placement.

Tools and Software Used in TCSC Modeling

Modern power system engineers rely on advanced tools for simulation and validation:

Software	Purpose	Features
MATLAB/Simulink	Control system design, dynamic simulation	Flexible modeling environment
PSCAD/EMTDC	Electromagnetic transient analysis	Precise switching & waveform simulation
DIgSILENT PowerFactory	Load flow, stability studies	Integrated modeling and result visualization
ETAP	Steady-state power system analysis	Commercial-grade utility applications

These platforms allow engineers to tweak control algorithms, assess performance under faults, and compare design alternatives in real-time.

📍 Placement Strategies and Optimization Techniques

The effectiveness of TCSC depends on optimal placement. Some popular methods include:

• Sensitivity analysis: Identify lines most sensitive to impedance changes.
• Genetic algorithms (GA): Metaheuristic method to find optimal locations considering cost and benefit.
• Particle Swarm Optimization (PSO): Simulates natural swarm behavior to find global optima for TCSC siting.
• Multi-objective optimization: Balances stability improvement, cost, and loss reduction.

Optimization ensures cost-effective deployment while maximizing system resilience.

Example: Indian Power Grid

India has deployed TCSCs in several regions to mitigate oscillations from long-distance bulk power transfer and improve voltage profiles. Transient simulations showed significant improvement in system damping after TCSC installation.

Example: Turkish Transmission Network

A study on Turkey’s transmission system revealed that strategic placement of TCSC devices improved transient stability and allowed greater integration of renewable energy sources.

Example: North American Grid

In the U.S., TCSC installations help alleviate congestion in transmission corridors and prevent cascading failures during peak loads.

The role of TCSC continues to evolve, especially as power grids become smarter and more decentralized:

• Integration with Renewable Energy Systems: TCSC complements variability by stabilizing voltage and enhancing transfer capabilities.
• AI-Driven Control: Machine learning algorithms dynamically tune TCSC operation for optimal performance.
• Hybrid FACTS Systems: Combining TCSC with devices like STATCOM for multifaceted control.
• Wide-Area Measurement Systems (WAMS): Use PMU data to adapt TCSC response in real-time across vast networks.

With these trends, TCSC is becoming a linchpin in next-generation smart grid frameworks.

Modeling TCSC for stability studies is a critical endeavor in today’s power system engineering. Its dynamic behavior, robust control capability, and versatile applications make it an indispensable tool for ensuring grid stability. Whether through steady-state modeling or detailed transient analysis, TCSC continues to shape the way engineers envision resilient, flexible, and efficient power systems.

As demand grows and systems become more complex, mastering the modeling and deployment of TCSC will remain an essential skill for researchers, planners, and operators aiming for a future-proof grid.
