🔍 Introduction
Modern power systems face increasingly complex challenges due to rising electricity demand, integration of renewable energy sources, and aging transmission infrastructure. Maintaining stability, optimizing power flow, and enhancing reliability are key priorities. One effective solution to these issues is the use of Thyristor-Controlled Series Capacitors (TCSC)—a crucial member of the Flexible AC Transmission Systems (FACTS) family.
The TCSC provides dynamic control over line impedance, which in turn allows for real-time regulation of power flows, damping of oscillations, and enhancement of transient stability. However, the effectiveness of TCSCs depends significantly on their control strategies. This article explores the various control techniques used in TCSC systems, their objectives, and how they contribute to efficient power flow management in transmission lines.
⚙️ Overview of TCSC Operation
A TCSC consists of a series capacitor bank that is shunted by a thyristor-controlled reactor (TCR). By adjusting the firing angle of the thyristors, the reactor can partially or fully bypass the capacitor, allowing dynamic tuning of the net reactance.
Depending on the configuration, the TCSC can operate in:
- Capacitive Mode: Increases power transfer capability
- Inductive Mode: Limits power flow or suppresses fault currents
To make full use of these operating modes, well-designed control strategies are essential.
🎯 Objectives of TCSC Control Strategies
- Dynamic Power Flow Control
Adjust impedance to direct power over alternate paths or relieve overloaded lines. - Stability Enhancement
Support the system during transient and dynamic instabilities by modulating reactance. - Damping of Power Oscillations
Suppress inter-area oscillations to maintain system synchronism. - Voltage Regulation
Provide indirect voltage support by affecting reactive power flow. - Fault Current Limiting
Switch to inductive mode during faults to protect equipment.

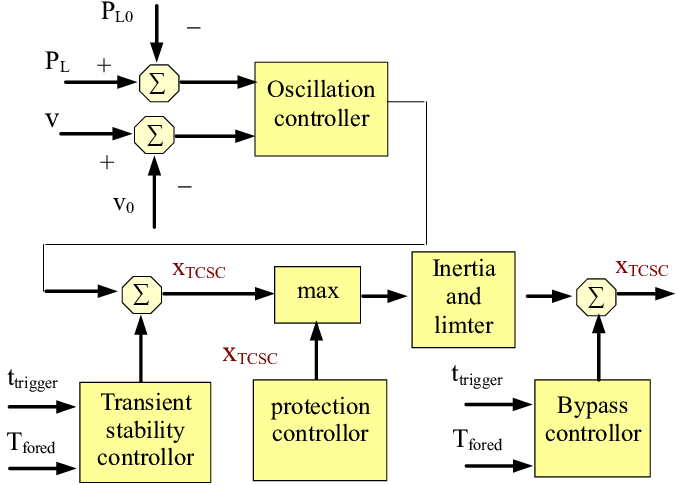

🧠 Key TCSC Control Strategies
1. Impedance Control (Open-Loop Control)
- Adjusts TCSC reactance to achieve a desired set-point impedance.
- Operates without feedback from system conditions.
- Simple but limited, typically used in steady-state or planning operations.
Example: Adjusting TCSC to maintain fixed power flow on a critical transmission corridor.
2. Power Flow Control (Closed-Loop Control)
- Uses feedback from power flow measurements to dynamically adjust TCSC impedance.
- Employs Proportional-Integral (PI) controllers to regulate active power.
e(t)=Pref−Pmeasured(t)e(t) = P_{ref} – P_{measured}(t)e(t)=Pref−Pmeasured(t) XTCSC(t)=KP⋅e(t)+KI∫e(t)dtX_{TCSC}(t) = K_P \cdot e(t) + K_I \int e(t) dtXTCSC(t)=KP⋅e(t)+KI∫e(t)dt
- Ensures robust response under varying load and network conditions.
3. Damping Control Strategy
- Designed to mitigate low-frequency oscillations (0.1–2 Hz) that can destabilize multi-machine systems.
- Functions similarly to a Power System Stabilizer (PSS).
Components:
- Input: Generator speed deviation or power oscillation
- Controller: Lead-lag compensator to introduce damping torque
- Output: Modulated TCSC reactance signal
Benefit: Enhances inter-area and local mode damping without modifying generator control.
4. Voltage Stability Control
- Indirectly affects bus voltages by altering power distribution in the network.
- When paired with other FACTS devices like SVC or STATCOM, TCSC helps prevent voltage collapse during contingencies.
5. Emergency Control and Fault Ride-Through
- During short-circuits or line faults, the TCSC switches to fully inductive mode.
- This increases impedance and reduces fault current, protecting the capacitor bank and system equipment.
- Once the fault is cleared, the controller smoothly transitions back to normal operation.
6. Supplementary Controllers (Advanced Techniques)
With advances in digital control and AI, newer strategies are being explored:
- Fuzzy Logic Controllers (FLC): Handle uncertainties and non-linearities better than classical PI.
- Neural Network-Based Controllers: Learn system behavior from historical data to predict and react to disturbances.
- Adaptive Control: Continuously adjusts controller gains to maintain optimal performance under varying conditions.
These methods are often used in wide-area control systems that rely on real-time data from Phasor Measurement Units (PMUs).
📈 Performance Evaluation of TCSC Control
To validate and tune TCSC control strategies, engineers use tools like:
- Time-domain simulation (e.g., MATLAB Simulink, PSCAD)
- Eigenvalue analysis for damping evaluation
- Load flow and contingency analysis
Performance indicators include:
- Response time to set-point changes
- Damping ratio of oscillatory modes
- Overshoot and settling time during transients
🔄 Integration with Other Controllers
In modern power systems, TCSCs rarely work in isolation. They are often coordinated with:
- SVC/STATCOM for voltage support
- PSS in generators for rotor angle stability
- Automatic Generation Control (AGC) for frequency regulation
Coordinated control ensures that TCSC actions support the overall system objectives and don’t cause instability.
🏁 Conclusion
The control strategy of a TCSC plays a vital role in defining its effectiveness in a power system. Whether it’s directing power flows, damping oscillations, or enhancing system resilience during faults, the performance of TCSC heavily relies on how intelligently it’s controlled.
From classical PI control to intelligent methods like fuzzy logic and neural networks, the evolution of TCSC control strategies reflects the growing complexity of power systems. As the world moves toward smart grids and renewable integration, the need for adaptive, robust, and predictive control strategies for TCSC will become more important than ever.
Well-designed TCSC controllers not only stabilize the power grid but also optimize its efficiency and reliability, paving the way for a smarter and more resilient electrical infrastructure.
