⚡ Comprehensive Guide to Static Var Compensators (SVC): Mechanisms, Configurations, and Applications

🔌 Introduction

In the current changing power systems—characterized by greater renewable integration, load fluctuations, and escalating system complexity—ensuring voltage stability and power quality has emerged as a key challenge. One of the most dependable and established solutions for dynamic reactive power compensation is the Static Var Compensator (SVC), a fundamental component of Flexible AC Transmission Systems (FACTS).

This detailed guide explores the operational principles, setups, advantages, and applications in the industry for SVCs. No matter if you’re a student, engineer, or utility planner, you’ll discover something useful here.

⚙️ What is a Support Vector Classifier?

A Static Var Compensator is a device connected in parallel that offers quick-reacting reactive power assistance. It controls voltage at its connection point by either consuming or producing reactive power, thus ensuring voltage stability.

“Static” denotes the lack of rotating equipment(unlike synchronous condensers).

“Var” represents volt-ampere reactive, which is the unit for reactive power.

“Compensator” signifies its function in equalizing reactive power within the system.

SVCs utilize thyristor-controlled or thyristor-switched capacitors and reactors, allowing for accurate and quick management of reactive power without mechanical switches.

🔧 Key Elements and Their Functionality

An SVC usually consists of a blend of the following:

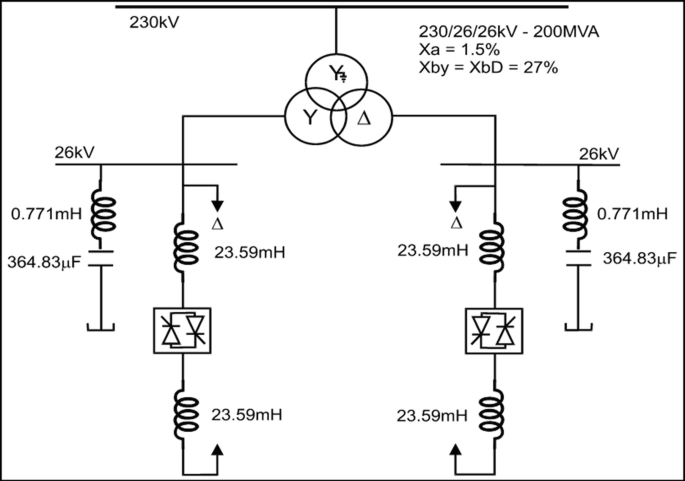

– Comprises a reactor in series with bidirectional thyristors.

– The SVC modifies the absorbed inductive reactive power by regulating the conduction angle of the thyristors.

– Includes capacitors that are activated or deactivated with thyristors.

Switching is binary—capacitors are completely on or off—offering capacitive assistance when required.

Of course! Please provide the text you’d like me to paraphrase. Filters that Clean Harmonics

– Required to reduce the harmonics generated by thyristor switching.

– Frequently utilized as passive filters adjusted to main harmonic frequencies.

Could you please provide the text you would like paraphrased? Control Mechanism

– Furnished with microcontrollers and digital signal processors (DSPs)

🔁 SVC Control Strategies

The control system of an SVC is its brain, executing various control modes:

Control ModeFunction
Voltage ControlMaintains the system voltage at a pre-defined value.
Reactive Power ControlRegulates the net reactive power flow at the bus.
Power Factor ControlKeeps power factor at load terminals near unity.
Slope ControlImplements a droop characteristic to allow multiple SVCs to share reactive duty.

Advanced SVCs even integrate with Wide-Area Monitoring Systems (WAMS) for coordinated operation across regional grids.

🏗️ SVC Configurations and Topologies

SVCs may be implemented in differentsetups,based on site conditions and performance needs:

➤ TCR alongside TSC

The typical configuration.

Provides seamless inductive regulation through TCR and incremental capacitive assistance through TSC.

➤ TCR + Constant Capacitor (CC)

A cost-effective option for setups with known capacitive requirements.

Not as flexible as TSC-based systems, yet easier to implement.

➤ Sophisticated Modular Configurations

Certain SVCs are constructed with several TSC or TCR branches for backup and modularity.

Hybrid SVCs can feature mechanically switched banks to enhance cost efficiency.

SVCs are indispensable in scenarios where voltage regulation, stability, and dynamic reactive power support are vital:

1. Transmission Grid Support

  • SVCs improve dynamic voltage stability when disturbances occur.
  • They allow for improved use of current transmission lines—crucial in crowded grids.

2. Industrial Facilities

  • Large arc furnaces or rolling mills generate abrupt changes in load.
  • SVCs regulate voltage to safeguard equipment and enhance power quality.

3. Wind and Solar Integration

  • Renewable resources are inconsistent and frequently situated far from demand centers.
  • SVCs assist in reducing voltage variations and handling weak grid linkages.

4. Railway Electrification

  • High-speed trains cause rapidly changing loads.
  • SVCs prevent voltage sags and reduce line losses in traction power supply systems.

📊 Technical Benefits of SVCs

BenefitDescription
Fast response< 20ms dynamic response time.
Voltage stabilizationMaintains voltage within tight operational limits.
Improved power qualityReduces flicker and harmonic distortion.
Increased transfer capacityAllows existing transmission infrastructure to handle higher power flows.
Reduced lossesBy regulating voltage and reactive flows.
Minimal maintenanceNo moving parts—high reliability and low O&M costs.

📎 SVC vs. Other Reactive Power Devices

FeatureSVCSynchronous CondenserMechanically Switched Capacitors (MSC)
Speed of ResponseVery fast (< 20 ms)Moderate (seconds)Slow (minutes)
MaintenanceLowHigh (rotating machinery)Low
HarmonicsIntroduces harmonicsNoneNone
Space RequirementMediumHighLow

🛠️ Planning and Deployment Considerations

During the planning of an SVC installation, system planners must take into account:

Short-circuit durability at the junction point.

Harmonic analysis for filter development.

Collaboration with current voltage regulation systems.

Coordination of protection and strategies for fault ride-through.

Analysis of costs and benefits for ideal positioning and sizing

🔮 The Future: Digitalization and Hybrid Compensation

The upcoming wave of SVCs will be more intelligent and better inter connected.

💡 Digital Twin Integration: Simulation in real-time and forecasting diagnostics.

⚡ Hybrid SVC + STATCOM: Combines benefits of both technologies.

🌍 Capabilities for Grid Forming: Assisting islanded and microgrid functionalities.

📡 Control Algorithms Driven by AI: For dynamic decision-making in real-time amidst uncertainty

✍️ Conclusion

The Static Var Compensator remains an essential device in contemporary power systems for dynamic voltage assistance, reactive power control, and grid stability. With quick response times and established technology, SVCs are addressing current issues while also adapting to accommodate future, more intelligent, environmentally-friendly grids.

Whether examining national transmission networks or local industrial uses, grasping the principles and functions of SVCs can enhance decision-making and strengthen infrastructure resilience
